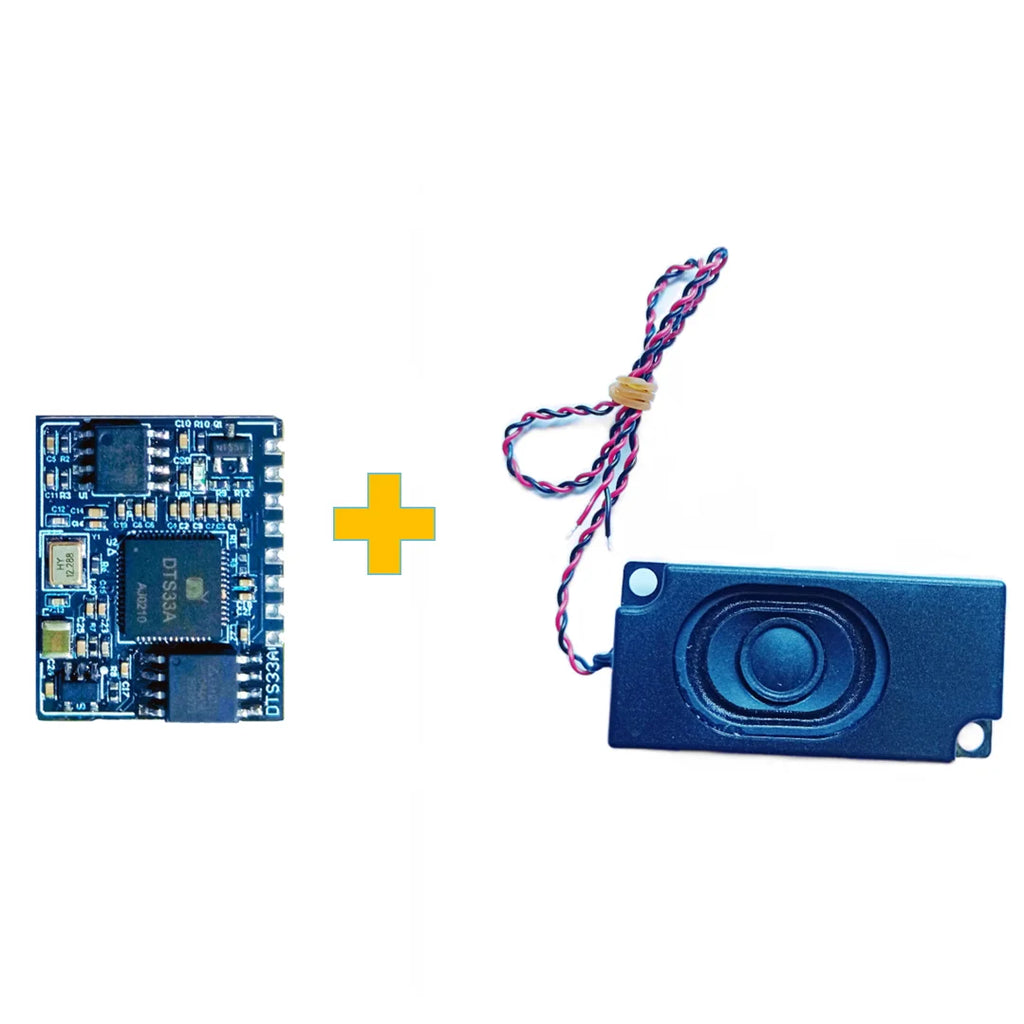

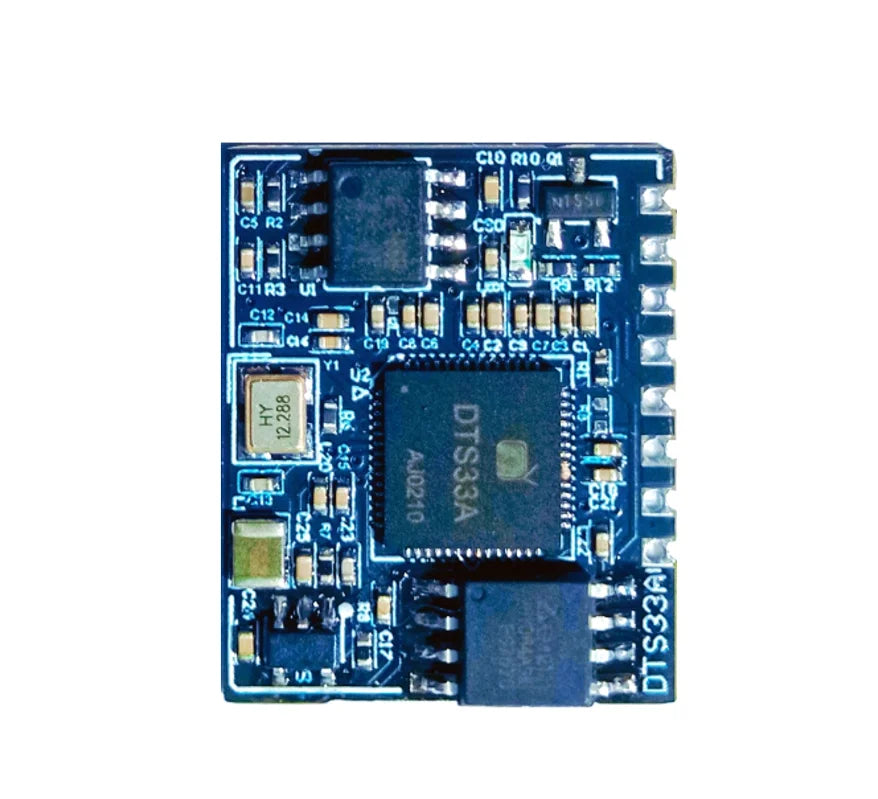

DTS33A Speech Synthesis Module Convert Text to Speech TTS Module Voice Broadcast Human Pronunciation
Tk 780.62
SPECIFICATIONS
Brand Name: NoEnName_Null
Condition: New
Hign-concerned Chemical: None
Model Number: DTS33A
Origin: Mainland China
Type: Module
is_customized: Yes
Arduino Programming Reference
----------------------------------------------------------------------------------------------------------
/*
Description:
Test Porgram for DTS33A Module
Version: DTS33A_V1
Created 2024 by Jack ZHang
IDE: Arduino IDE 2.2.0
Board:Arduino-Uno
Hardware Connection:
Arduino-Uno---DTS33A
PIN 1(TX) ---RX
*/
#include<SoftwareSerial.h>
voidsetup(){
Serial.begin(115200);// arduino default serial PIN0-RX PIN1-TX
}
voidloop(){
Send_Data_To_TTS_Module();
delay(15000);//Send data / seconds
}
//发送TTS数据包测试DTS33A语音模块
intSend_Data_To_TTS_Module(void)
{
String TTS_String = "[v3][s3]Hello,Welcome! ";
//The meaning of [v3] [s3] is to simultaneously set the volume and speed to level 3;//
u16 data_len=0;
data_len = TTS_String.length()+2;//data length
Serial.write(0xFD); //head
Serial.write(data_len>>8); //length H
Serial.write(data_len); //length
Serial.write(0x01); //CMD//
Serial.write(0x04); //REF=UTF-8 Related to development environment, 0x04:UTF-8; 0X01:GB2312
Serial.println(TTS_String); //Text content that needs to be synthesized
return1;
}
----------------------------------------------------------------------------------------------------------
STM32 Programming Reference
----------------------------------------------------------------------------------------------------------
void Test (void)
{
unsigned int dat_len=0;
char package[512] = "Welcome to use DTS[n3]33A module!";
dat_len = strlen(package)+2;
Usart_Send（ 0xFD); //head
Usart_Send（ dat_len>>8); //length H
Usart_Send（ dat_len); //length L
Usart_Send（ 0x01); //CMD
Usart_Send（ 0x04); //REF
//REF Related to development environment, 0x04:UTF-8; 0X01:GB2312
Usart_Send_Str(package);
}
----------------------------------------------------------------------------------------------------------
If you have any other needs, please contact customer service. Thank you!
